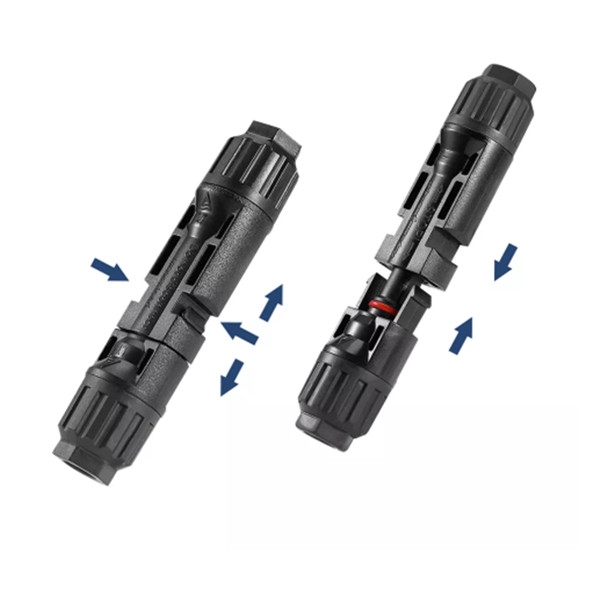

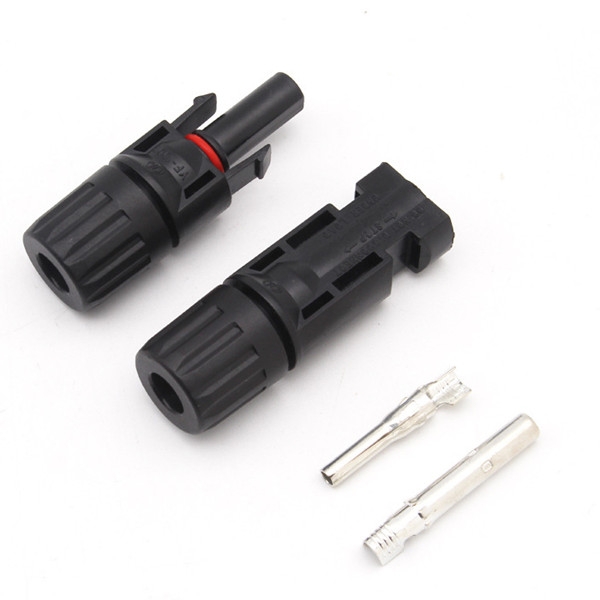

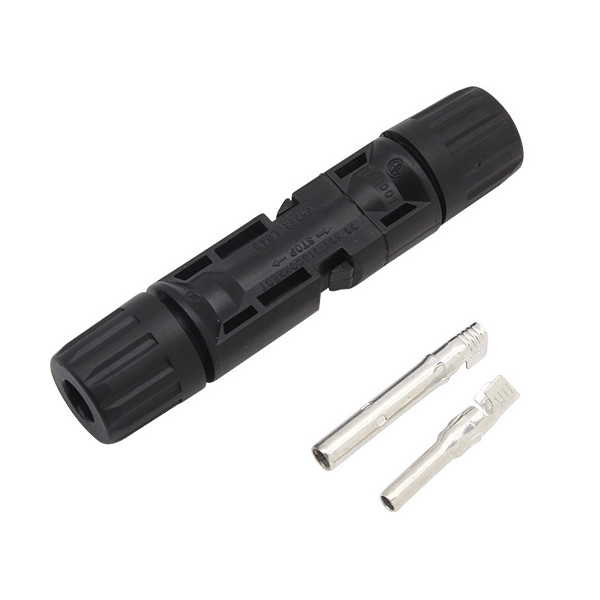

Solar connector MC4 1000V - pair

A set of MC4 solar connectors (male + female) for installation on solar cables with a cross-section from 2.5 to 6 mm2 and a recommended continuous current of max. 16A.

Advantages of MC4 connectors:

  • simple, fast and safe installation
  • high mechanical resistance
  • they are intended for high currents and voltages
  • the contacts are adjusted to have the lowest possible transition resistance
  • encapsulation for high resistance to water and humidity
  • the connector is made of high-quality material with a wide temperature range from -40°C to 125°C
  • service life of more than 30 years

Specification:

  • Maximum voltage: DC1000V
  • Test voltage: DC6000V
  • Rated current: 30A
  • Recommended continuous current: 16A
  • Insulation resistance: >500MOhm
  • Contact resistance: <0.5mOhm
  • Safety class: Cat III/2
  • Protection: IP67
  • Working temperature: -40°C~+125°C
  • For wire cross-sections: 2.5/4/6mm2
  • Insulation material: PPO
  • Contact material: Silver-plated copper

Code: SMAKOMC4

Producer: OEM

Warranty: 24 months

In stock: 99+ ks

Reservation: 0 ks

Price:

1,13
RP: 0 €
1,36 € (with VAT)

ks

1 - 49 ks 1,13 €
50 - 199 ks 1,05 €
200 a viac ks 0,97 €
